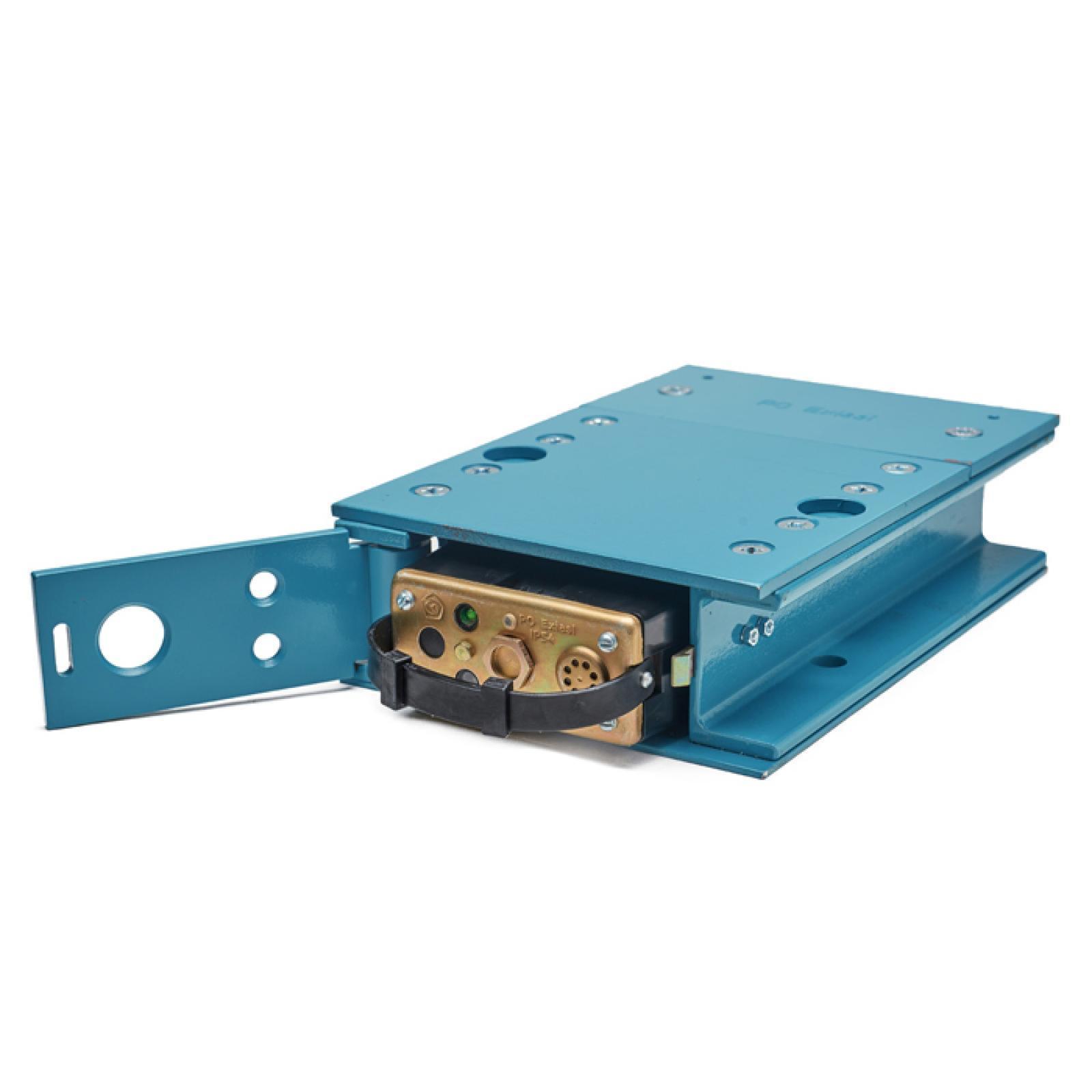

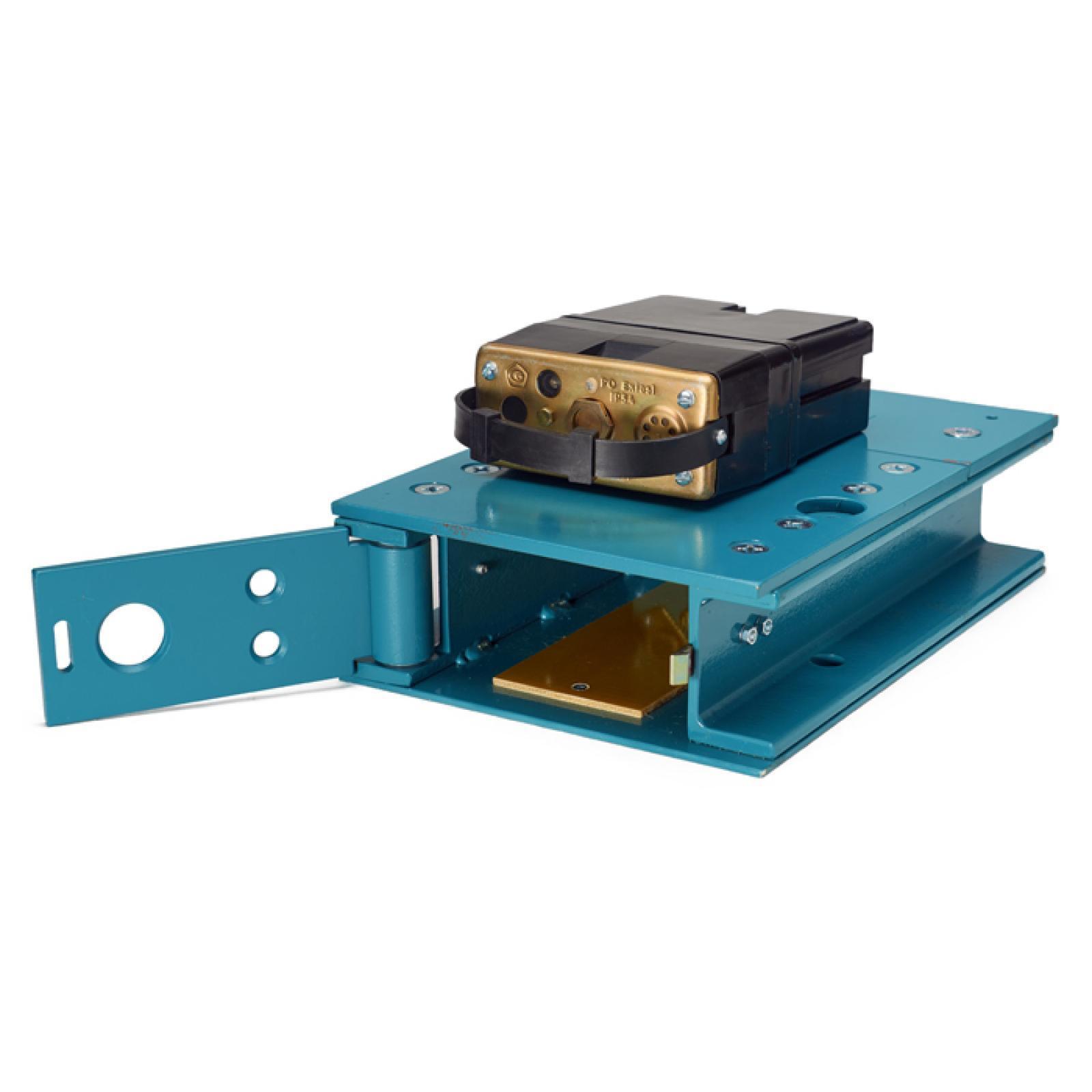

Methanometer MGM-1
Price by request
- Explosion protection marking RO ExiasI
- Protection against external influences IP54
- Analyzed gas СН4
Purpose:
Control of local accumulations of methane in the area of operation of shearers and roadheaders and other mining machines and mechanisms, including underground mobile compressor stations and installations.
Application:
Mines, hazardous for gas and / or dust, of all categories and overcategorized
To buy the MGM-1 Methanometer, you need to contact the managers.
- MGM-1 (M) - for mining machines (tunneling and shearers);
- MGM-1.1 (M) - for underground mobile compressor stations and installations.
Technical characteristics
Parameter | MGM-1 |
---|---|
Explosion protection level and type | РО ExiasI |
Protection against external influences | IP54 |
Alarm threshold values | |
- mining machine (MGM-1) | 1.5% vol. d. methane |
- underground compressor station (MGM-1.1) | 1.0% vol. d. methane |
Threshold value at which a power outage occurs | |
- mining machine (MGM-1) | 2.0% vol. d. methane |
- underground compressor station (MGM-1.1) | 1.0% vol. d. methane |
Limits of permissible basic absolute measurement and signaling errors | ± 0.2% vol. d. methane |
Time of continuous work without recharging the batteries of the power supply | Not less than 10 h |
Response time | No more than 15 s |
Signaling | light and sound |
light and sound | 9 kg |
Portable unit weight | 1 kg |
Terms of use: | |
Ambient temperature | from - 10 to + 40 ° С |
Ambient relative humidity | up to 100% (at a temperature of 35 ° C) |
