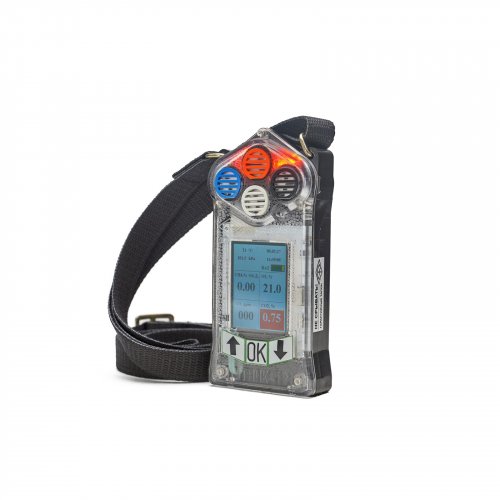

Gas analyzer “Sputnik-1M”
Price by request
  • Explosion protection PO Exial X
  • Protection against external influences IP65
  • Analyzed gases СН4, О2, СО2, СО

Purpose:
Continuous monitoring of the mine atmosphere with the ability to transmit information in real time.

Application:
Gas and / or dust hazardous mines.

  • Sound and light signaling about the crossing of the response threshold of the volume fraction of components
  • Ease of control, intuitive interface;
  • Up to four sensors can be installed;
  • “Black box” function for storing values for the last 120 hours of operation;
  • Display of current date, time, temperature and atmospheric pressure;
  • Continuous measurement of the volume fraction of gas components;
  • The ability to install a radio module;

To buy the Gas Analyzer Sputnik-1M, you need to contact the managers.

Technical Characteristics

Parameter Units of measurement Unit
Explosion protection marking   PO Exial X
Protection against external influences   IP65
Time of continuous work, h   70
Operating time without correction of readings, months   12 (CH4, CO2) 3 (O2. CO)
Service life, years, not less   5
Overall dimensions, mm   152 × 72 × 32
Weight, g, no more   380
Metrological parameters
Range of measurements / indications vol. d. CH4,% vol.    0-2,5/2,5-100
Limits of basic absolute error of concentration measurement CH4, % vol. ±0,1
СО, ppm ±(6+0,07Сх)
СО2, % vol. ±0,1
О2, % vol. ±0,5


Types:

Gas analyzer name Measured gas component
  CH4
SPUTNIK-1M.1 +
SPUTNIK-1M.1 +
SPUTNIK-1M.1 +
