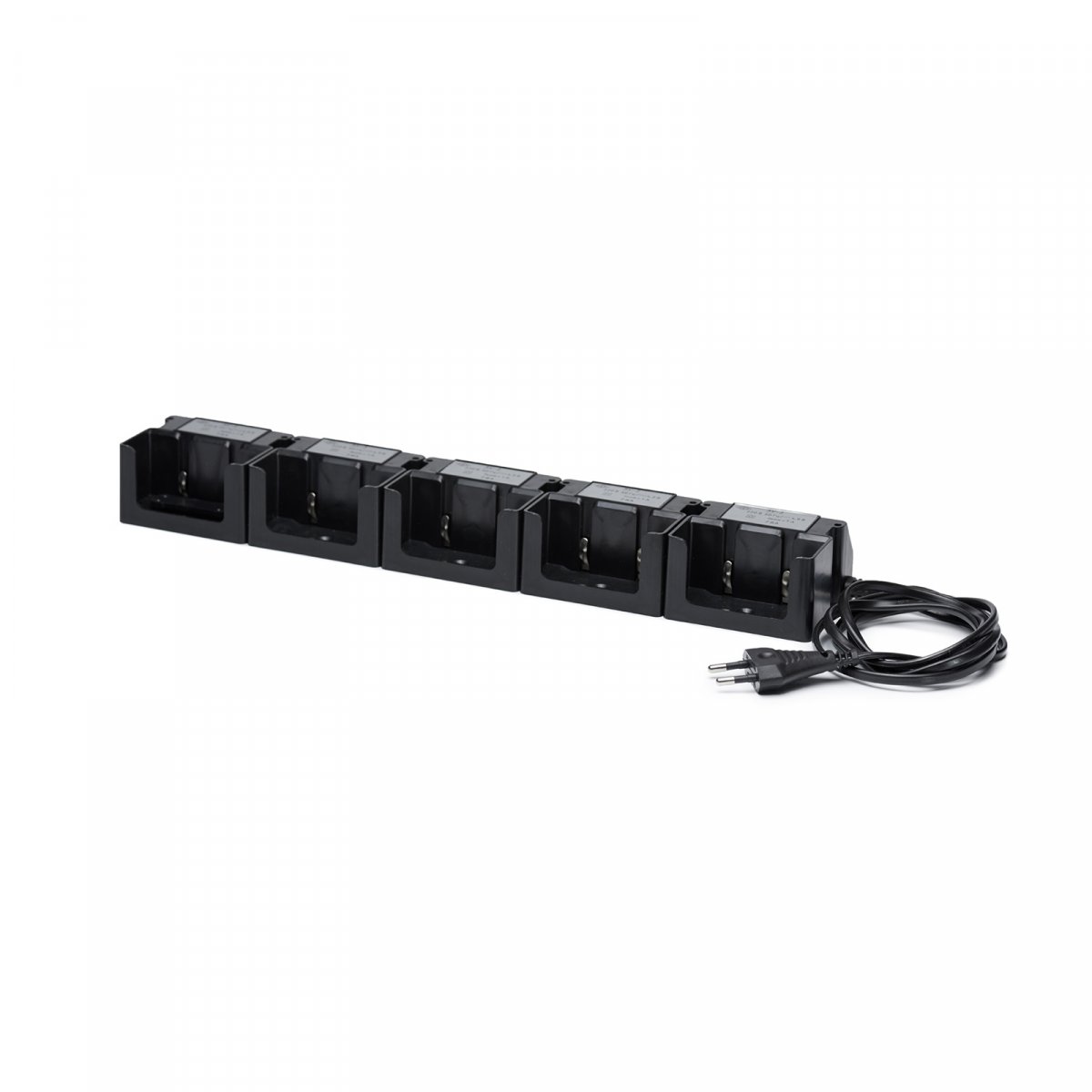

Charger ZU-2.1
Price by request

The chargers are designed to charge lithium-polymer storage batteries with a rated voltage of 3.7 V installed in SPUTNIK-1M gas analyzers.

ZU-2.1 is a group charger allowing simultaneous charging of five SPUTNIK-1M gas analyzers.

To buy the ZU-2.1 Charger, you need to contact the managers.

Technical characteristics
Output voltage 4,9 V
Rated charge current 1,0 A
Supply voltage 220 (+22; -33) V
Frequency (50 ±1) Hz
Power consumed from the power supply  no more than 35 V·A
Charging cord length 1,5 m
Electric shock protection class Class II according to GOST
Working conditions of use
- ambient temperature from 10 to 35 ºС
- relative humidity Up to 90 % at a temperature 25 ºС
Overall dimensions 44 × 384 × 74 mm
Weight 580 g
